Computer Overview

Last updated:

The Computer Overview puts a lot of information at the click of your mouse or trackpad. Learn the various features of the Computer Overview to make your use of Watchman Monitoring more efficient.

Computer Overview Summary

Computer Overview Summary

The Computer Overview consists of a System Summary with specifications on the monitored computer, integrations, technical specifications, model information, and reporting information.

Actions Menu

Actions Menu

The Actions menu in the Computer Overview allows you to quickly access the following functions:

  • Notify at Next Report - Sends an email upon next check-in. Learn more...
  • Change Group - Move computer to existing group or create a new group.
  • New Expiration - Add a new expiration for this computer. Learn more...
  • View as PDF - Generates a PDF Overview to send to a client. Learn more...
  • Hide Computer - Hidden records are not displayed in the interface, and all related warning/missing emails are skipped. Learn more...
  • Delete / Uninstall - Remove record, and optionally remotely remove Monitoring Client. Learn more...

Computer Overview

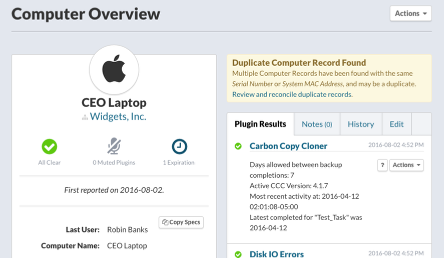

Monitored Computer Overview

Monitored Computer Overview

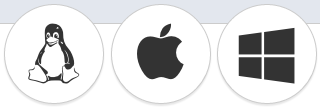

OS Icon

Monitored Computer OS Icon

Quickly note the operating system of the computer with the Linux, Mac and Windows icons.

Display Name

Display Name

Directly under the Operating System icon is the Display Name. The Display Name defaults to the Computer Name and can be edited in the Edit tab > Display Name.

Group

Group Link

Under the Display Name is a link to the Group this computer is assigned. Clicking this link will display all computers in this Group.

Status Icons

Overall Status of Computer - All Clear
Overall Status of Computer - Warning Reported

Under the Group link, are three icons to indicate the overall status of the computer, Muted Plugins, and Expirations. Clicking the icon will take you to respective feature for review or editing.

Computer Description

Monitored Computer Description

Under the Status Icons is the Computer Description. The Computer Description defaults to First reported on... for an installed client or Redeemed by... for Enrollment Codes. Edit the Computer Description by clicking the pencil icon, or in the Edit tab > Description.

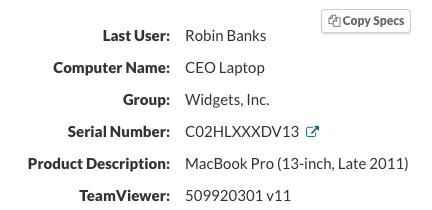

Computer Specifications

Computer Specifications

Under the Computer Description is a summary of the Last User, Computer Name (not the Display Name), Current Group, Serial Number, Product Description, and Integration identifiers (e.g. TeamViewer ID).

Clicking the Copy Specs button puts a similar specification summary in your clipboard:

Computer Name: CEO Laptop
Serial Number: C02HLXXXDV13
Apple Product Description: MacBook Pro (13-inch, Late 2011)
Configuration: MBP 13.3/2.4/2X2GB/500-5400/SD/GLSY
Purchase Date: 2012-05-24
Warranty Expiration: 2013-05-24
Operating System: OS X 10.10.5 (14F1713)
Installed RAM: 4 GB

Max RAM:
RAM Speed:
Processor: Intel Core i7 2.2 GHz (4 core 1 processor)
System MAC: AC:87:A3:2C:9C:1D

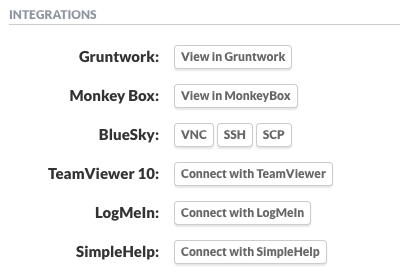

Integrations

Example Integrations

The Integrations area provides quick links into various integrations for screen sharing, remote monitoring and maintenance (RMM), and documentation tools. Learn more about Integrations.

Technical Specifications

Tech Specs vary by Platform. Computer Demographic Alert Notifications can be configured to be alerted if the Computer Name, Group, Memory Configuration, Serial Number or Operating System (OS) changes.

Mac

Example Mac Tech Specs

Macintosh Tech Specs include Operating System, Maximum Operating System, Serial Number, Installed RAM (Memory), Maximum RAM, RAM Speed, Boot Volume Capacity, Boot Valume Usage, Processor, System MAC Address, SMC Version, FileVault Status, Flash Version, and a link to potential upgrades at Other World Computing.

The Visit OWC button links to upgrades specific to the computer model.

Tech Specs: Operating System (OS)

OS Alerts are also displayed under the current Operating System when viewing the Tech Specs for a computer record.

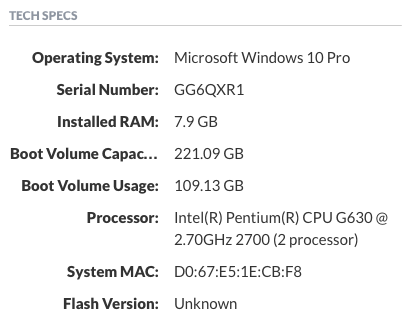

WIndows

Example WIndows Tech Specs

Windows Tech Specs include Operating System, Serial Number, Installed RAM (Memory), Boot Volume Capacity, Boot Volume Usage, Processor, System MAC Address, and Flash Version.

Linux

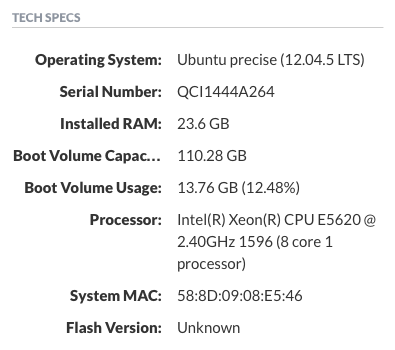

Example Linux Technical Specifications

Linux Tech Specs include Operating System, Serial Number, Installed RAM (Memory), Boot Volume Capacity, Boot Volume Usage, Processor, System MAC Address, and Flash Version.

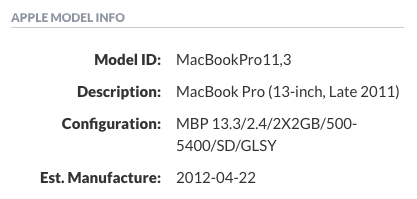

Apple Model Information

Example Apple Model Information

Apple Model Info includes Apple's Model ID, Apple's Desciption, Configuration, and estimated date of Manufacture. Only displayed for Apple Computers.

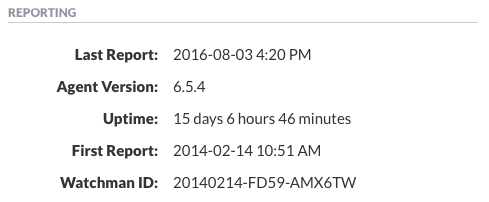

Reporting Information

Reporting information provides information on the Monitoring Client installed on the computer. Information includes the Last Report (Last Check-in), Agent Version, Uptime of computer at last check-in, First Report, and the Watchman ID.

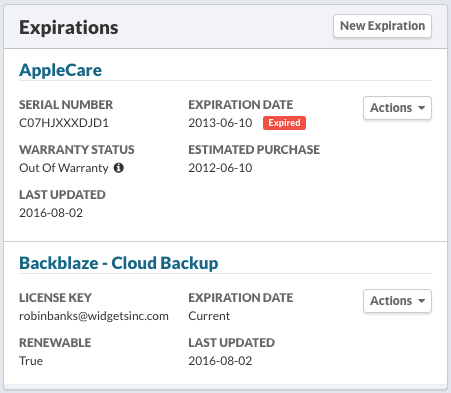

Expirations

Example Expirations Status

The Expirations section of the Computer Overview shows Expirations related to the computer. You can add an Expiration to this computer by clicking the New Expiration button. Learn more about Expirations.

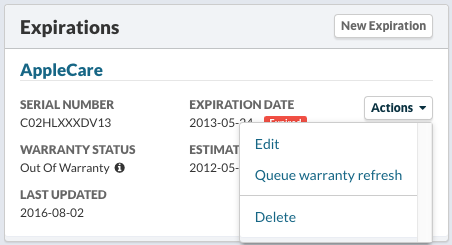

Example AppleCare Expiration - Action Menu

From the Expirations Actions menu, you can edit an Expiration, and for those with GSX Integration, can queue AppleCare Expirations for a warranty refresh.

Alert Warnings

Pending Report Nortification Alert Warnings

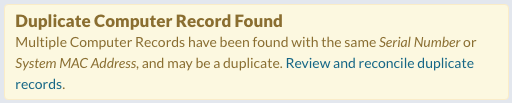

Duplicate Computer Record Nortification Alert Warnings

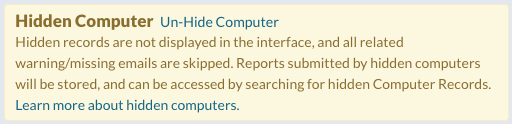

Hidden Computer Nortification Alert Warnings

Alert Warnings will display when a Report Notification has been requested, a Duplicate Computer Record is found, or a computer is hidden.

Plugin Details

Example Plugin Details

Each Plugin Result under Plugin Details is a highly functional status area allowing for quick access to history, open tickets, plugin information, and actions that can be applied to the individual plugin.

Plugin Status

Example Plugin Details
All Clear or All Clear with Open TicketPlugin Status

These indicate a Plugin Status of All Clear or All Clear with an Associated Ticket.

  • Clicking the Green Checkmark will take you to the Plugin History.
  • Clicking on the Ticket icon will take you to that ticket in your ticketing system, to allow for closing the ticket.
Informational Report Plugin Status

This indicate a Plugin Status of an Informational Report being sent.

Warning Triangle or Red Ticket Plugin Status

These indicate a Plugin Status of Warning Reported or Warning Ticket Associated Ticket.

  • Clicking the Red Warning will take you to the Plugin History.
  • Clicking on the Ticket icon will take you to that ticket in your ticketing system.

Plugin Status

Example Plugin Details

Clicking the Plugin Name will take you into the Plugin History.

Plugin Support

Example Plugin Details
Plugin Support Button Menu

Clicking the Plugin Support Question Mark (?) will allow you to view the Plugin Support Article, or Request Support. Learn more about the Plugin Support button.

Plugin Actions menu

Example Plugin Actions Button
Plugin Actions menu

Clicking the Actions next to the Plugin will give you Muting Options, History Options, and the ability to Create a Note from the Plugin Result.

Ignored Plugins

Ignored Plugins

Plugins that have been ignored will be displayed in this area. See Ignoring a specific plugin result for additional information.

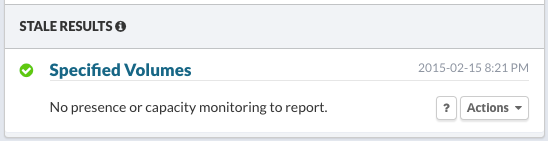

Stale Results

Stale Results

Plugin Results which are not updated during current reports are considered Stale after 24 hours, and are displayed here. Use the Actions menu to acknowledge and clear these Stale results.

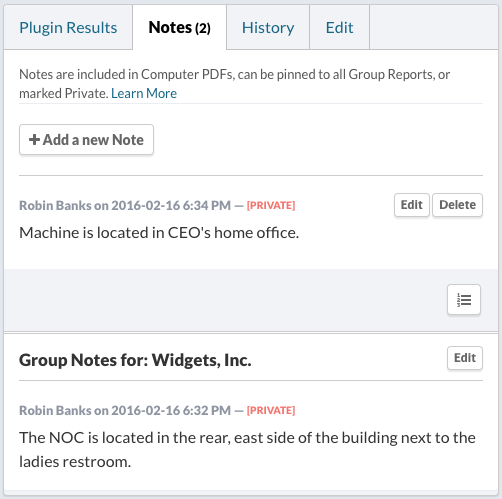

Notes

Example Notes for a Computer with Group Notes

The Notes tab summarizes Machine Notes and Group Notes in one location. Learn more About Notes in Watchman Monitoring.

History

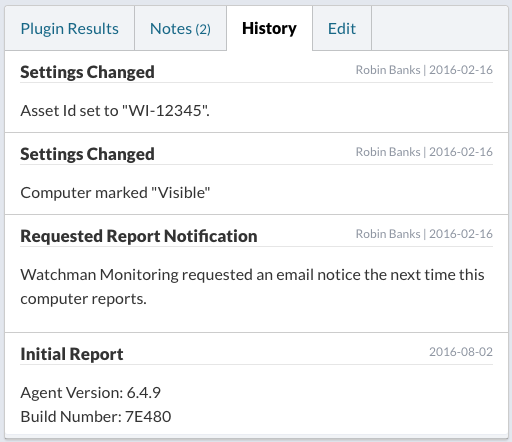

Example Computer Overview History

The History reflects changes made by Users, and emails sent by Watchman Monitoring, and is informational only.

Edit

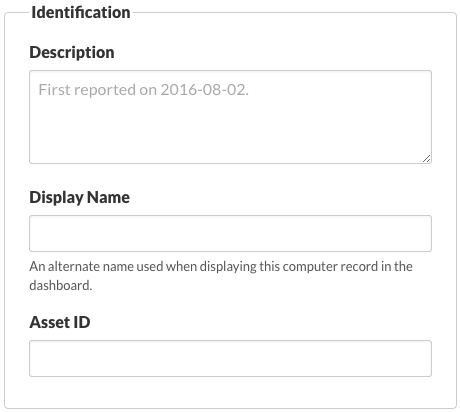

Identification

Edit > Identification

You can edit identifying information about the computer including its Description, Display Name, and Asset ID.

  • The Description will appear below the overall machine status icons and defaults to First reported on... for an installed client or Redeemed by... for Enrollment Codes. Learn more about Computer Description Editing.
  • The Display Name is an alternate name used when displaying this computer record in the dashboard.
  • The Asset ID is displayed in the Computer Specifications and on Group Reports.

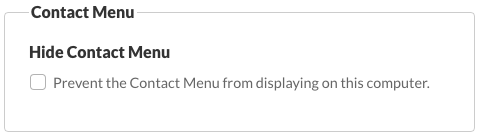

Contact Menu

Contact Menu

The Contact Menu can be hidden on an specific computer, by selecting the Prevent the Contact Menu from displaying on this computer checkbox. Selecting this option will override the group Contact Menu setting. Learn more about Watchman Monitoring's Contact Menu.

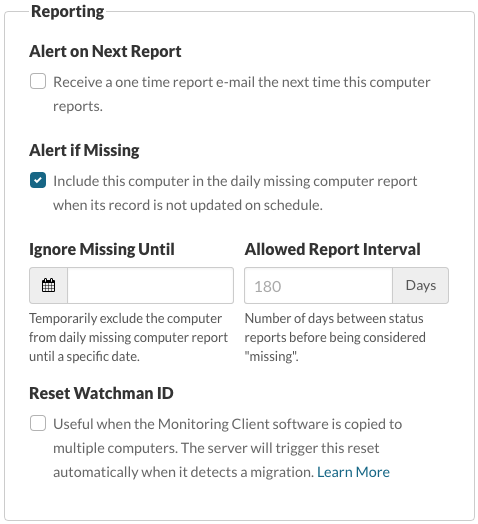

Reporting

Computer Overview Reporting Settings

Alert on Next Report

Check to receive a one time report email the next time this computer reports. Checking this box is the same as selecting Alert At Next Report from the Computer Overview Actions menu. This will also enable an Alert Warning dialog on the Computer Overview.

Alert if Missing

Check to include this computer in the Daily Missing Computer Report when its record is not updated on schedule.

Ignore Missing Until

Set a date to temporarily exclude the computer from the Daily Missing Computer Report until a specific date.

Allowed Report Interval

You can set the number of days between status reports before being considered "missing". (Default is 7 days.)

Reset Watchman ID

Useful when the Monitoring Client software is copied to multiple computers. The server will trigger this reset automatically when it detects a migration. Learn more about duplicate Watchman IDs.

Remote Access Integrations

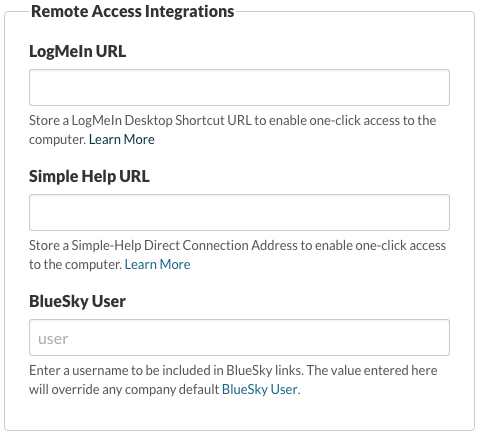

Remote Access Integrations

LogMeIn URL

Add the LogMeIn Desktop Shortcut URL to enable one-click access to the computer.

Simple Help URL

Add the Simple Help Direct Connection Address to enable one-click access to the computer

BlueSky User

Enter a username to be included in BlueSky links. The value entered here will override the company default.

Save Settings

Save Settings

Click Save to save any settings changes made to the Computer Record. Navigating away from the page will also confirm leaving the page, if settings changes have not been saved.
